System holes

Icon

Menu bar

Keyboard shortcut
../../_images/Elements_MillingElements_ToolSystem.en_US.png

Insert > System holes

S

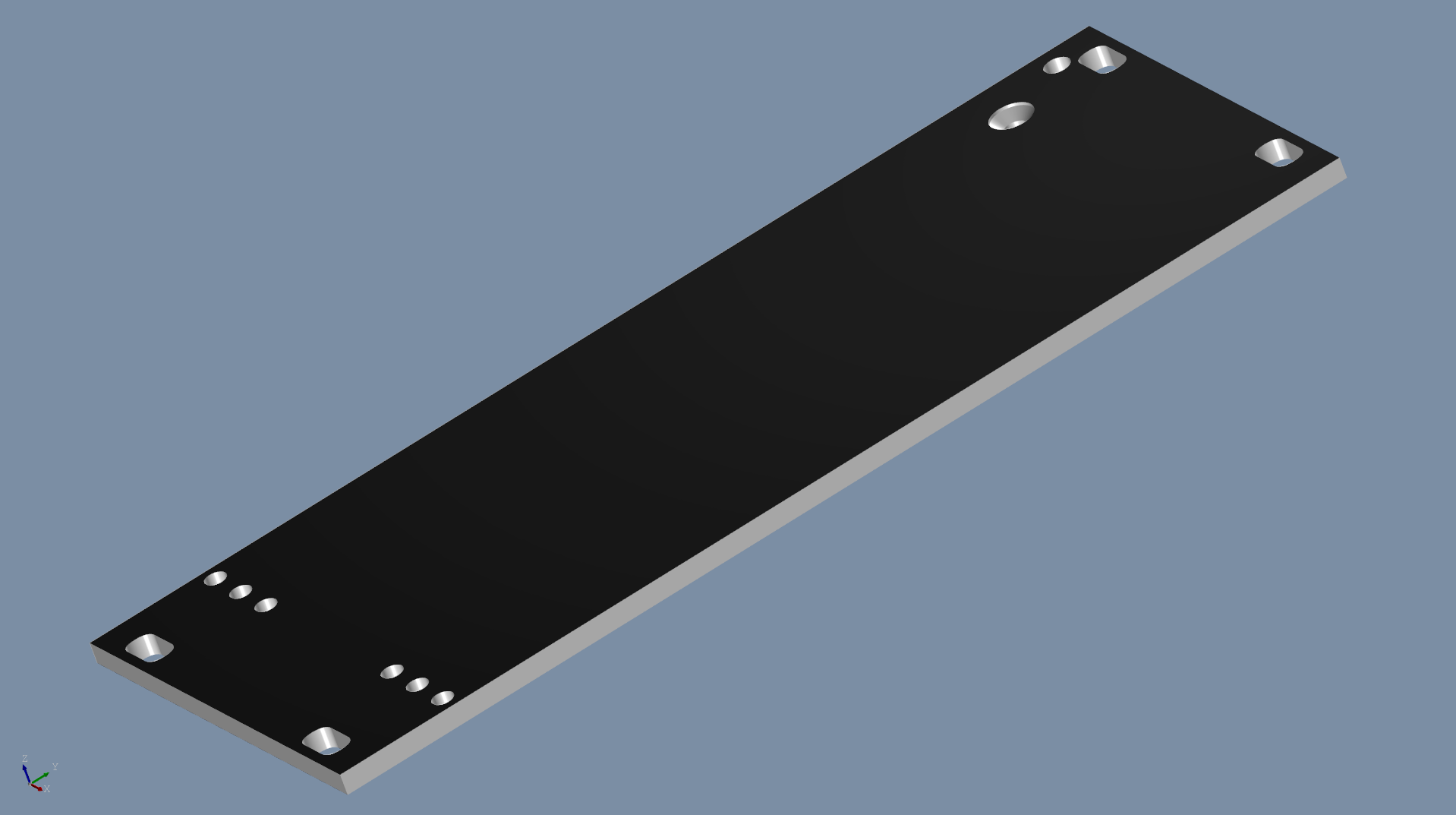

System holes are a combination of milling elements for use in racks systems of common 19” systems. The drill holes are used to fasten the front panel to the enclosure and mount handles and PCB holders. They are based on the system-specific dimensions of the manufacturers Schroff and Fischer.

../../_static/images/Elements_MillingElements_system_holes_3Dview.png

In the Insert system holes dialog, you can choose between drill holes for partial/front panels from the various manufacturers as well as specify whether system holes that are already in the file should be deleted or retained.
