Rectangular cut-out

Icon	Menu bar	Keyboard shortcut
	Insert > Rectangular cut-out	R

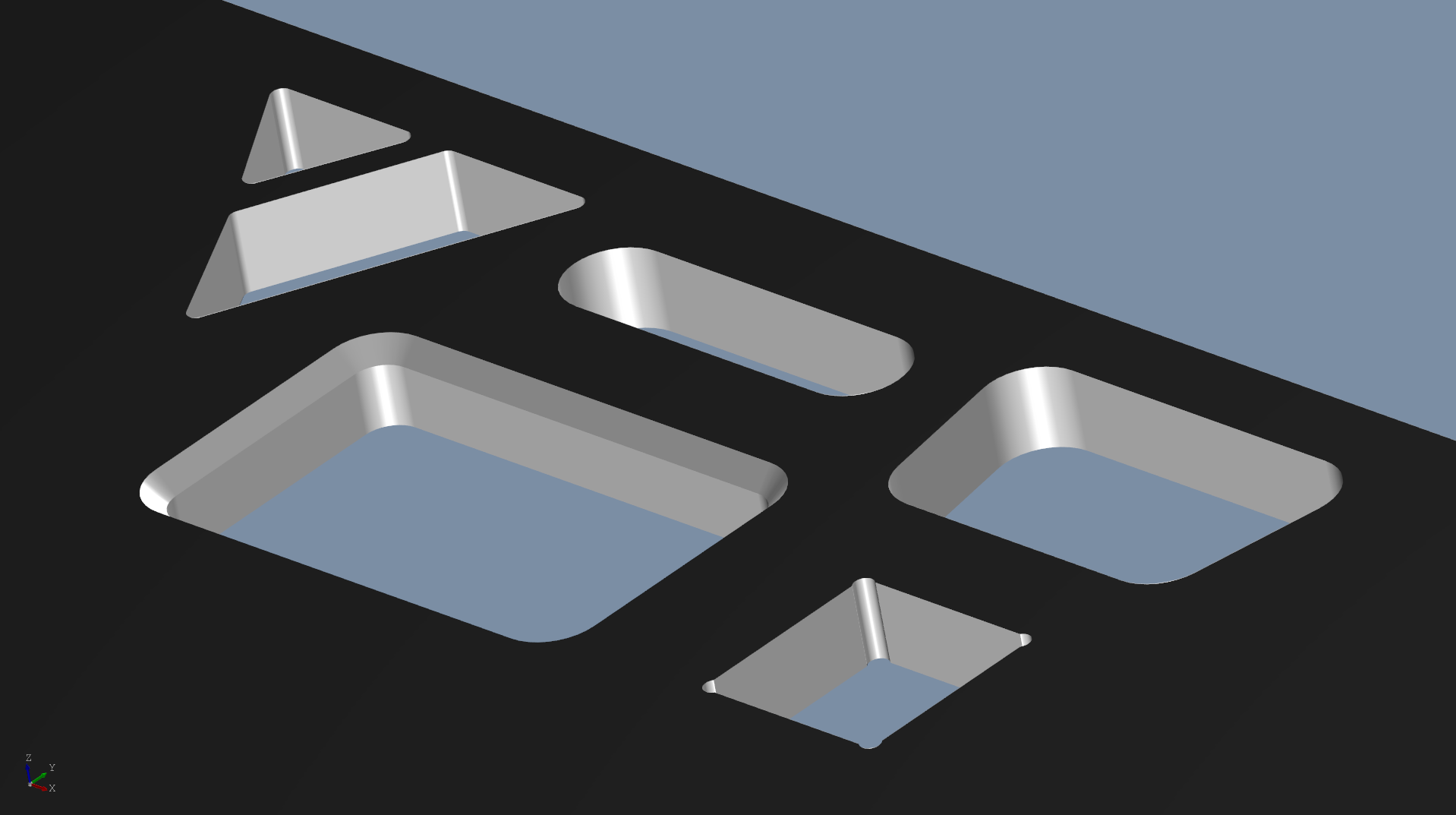

You can use this function to configure trapezoids (parallelograms, rhombuses) and triangles as well as slotted holes in addition to rectangles.

Function properties

Parameters	Description
Width	Width of the rectangular cut-out
Height	Height of the rectangular cut-out
Corner radius	Inner radii at the rectangular cut-out’s four corners
Rotation angle	Rotation angle of the rectangular cut-out around its reference point
Tool	The 3 mm cutter is set by default. If the box next to Automatic selection is checked, the tool will adjust as soon as a smaller inner radius is entered.
Cut after surface finishing	Only for powder-coated panels. Check the box next to this option if the cut-out is to be made after powder-coating. Additional information.
Do not produce element	Check the box next to this option if the element is not to be machined but rather placed on the front panel for information purposes only.
Angle (left)	For a trapezoid and triangle: angle of the left sideline to the sideline of the original rectangle
Angle (right)	For a trapezoid and triangle: angle of the right sideline to the sideline of the original rectangle. For a triangle, this angle is automatically selected.
Triangle	When the box next to this option is checked, a triangle is created via a leader line from the lower left corner to the upper right corner.
Edge machining	The edges on the front and reverse sides can be bevel or rounded.
