Cavity

Icon	Menu bar	Keyboard shortcut
	Insert > Cavity	F

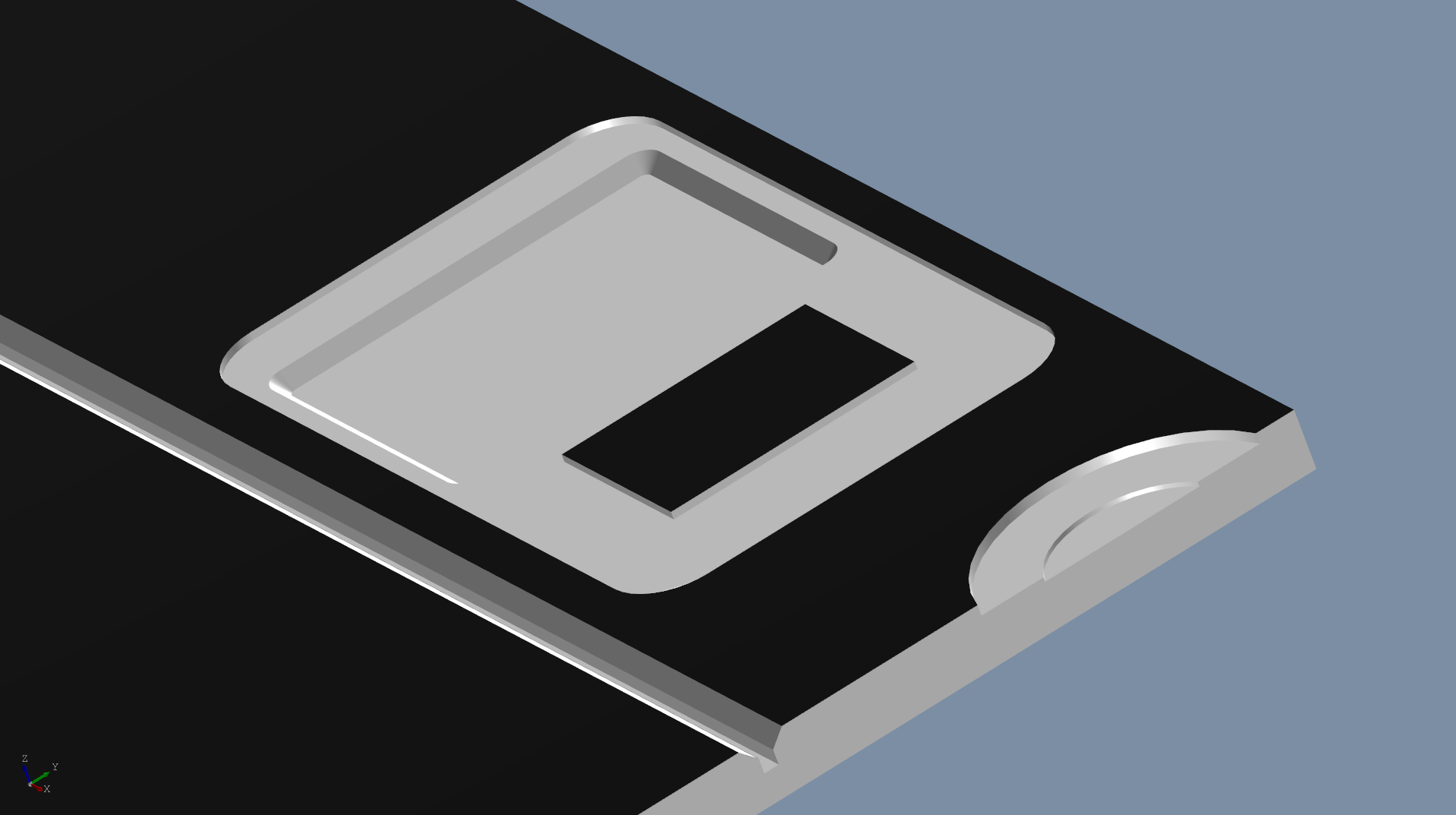

A cavity is a recess (pocket) that is plane-parallel to the front panel’s surface. It can be introduced into both the front and the reverse side.

Function properties

Parameters	Description
Surface shape	Possible shapes: rectangle, circle, as well as cavities with a recessed inner area. If you need complex cavities with other contours, you can design and create them yourself using DXF free contours. For information on how to do this, refer to the Free contour section.
Place on reverse side	Check the box next to this option if the cavity is to be made on the reverse side.
Diameter	Diameter of the circular cavity
Width	Width of the rectangular cavity
Height	Height of the rectangular cavity
Depth	Depth of the cavity
Corner radius	Corner radius of the rectangular cavity
Rotation angle	Rotation angle of the rectangular cavity
Tool	The 3 mm cutter is set by default. If the box next to Automatic selection is checked, the tool will adjust as soon as a smaller corner radius is entered.
Cut after surface finishing	Only for powder-coated panels. Check the box next to this option if the drill hole is to be made after powder-coating. Additional information.
Do not produce element	Check the box next to this option if the element is not to be machined but rather placed on the front panel for information purposes only.
Edge machining	Possibility to provide the edge of the cavity with a bevel or rounding. Do not machine inner contours of cavities: This option is available for cavities with inner areas. When the box next to this option is checked, the set edge machining of the cavity is not applied to the inner area.
Inner area	Diameter or width and height of the non-cavitated inner area. With Offset the inner area can be moved within the cavity.
