Curved slot

Icon	Menu bar	Keyboard shortcut
	Insert > Curved slot	C

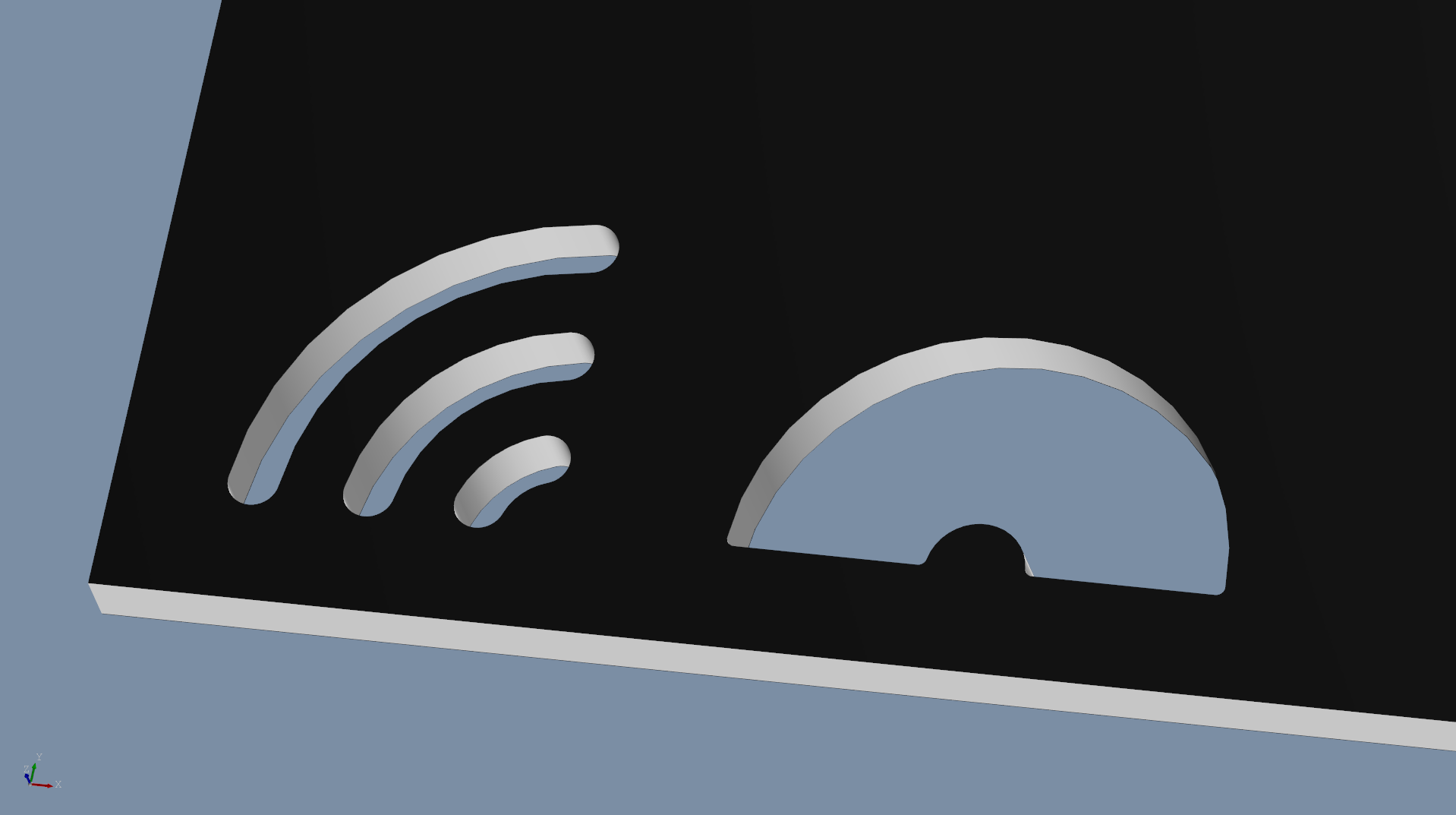

A curved slot is a circular ring segment or a circularly curved oblong hole. It is particularly suitable for creating fan exhaust outlets, intercom cover panels, and so on.

Function properties

Parameters	Description
Inner radius	Radius of the curved slot’s inner arc
Width	Width: difference between the curved slot’s outer and inner radius
Arc length	Angle between the two radii spanning the curved slot
Corner radius	Inner radii at the curved slot’s four corners
Rotation angle	The curved slot’s rotation angle around its reference point.
Tool	The 3 mm cutter is set by default. To produce smaller inner radii, uncheck the box next to Automatic selection (this may result in higher costs due to tool changes).
Cut after surface finishing	Only for powder-coated panels. Check the box next to this option if the curved slot is to be made after powder-coating. Additional information.
Do not produce element	Check the box next to this option if the element is not to be machined but rather placed on the front panel for information purposes only.
Edge machining	The edges on the front and reverse sides can be bevel or rounded.
